Overview

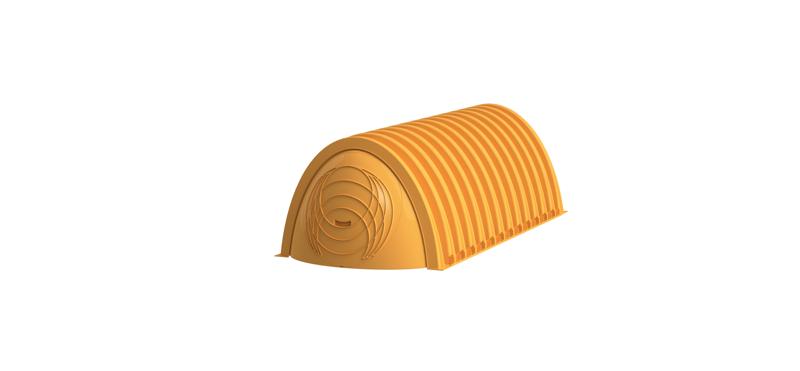

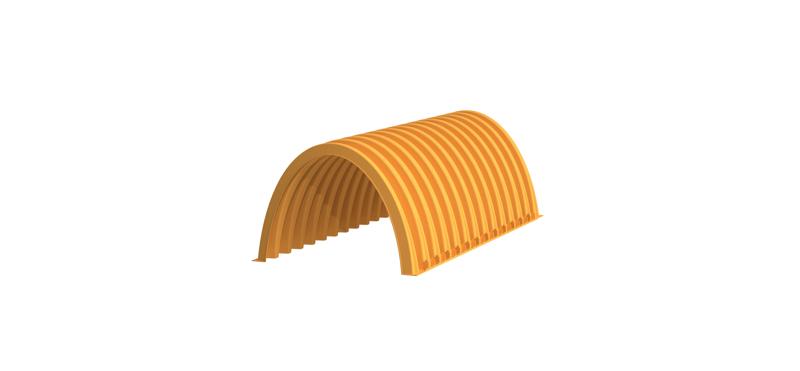

The StormTech SC-800 sets a new benchmark in stormwater chamber performance, offering industry-leading structural integrity and efficiency. Engineered with superior arch stiffness, the SC-800 boasts an arch stiffness coefficient exceeding 750 lbs/ft/%, —making it one of the strongest chambers on the market. This best-in-class performance translates into exceptional strength under load, ideal for long-term durability in demanding applications.

The StormTech system maximizes land utilization for both commercial and public developments. Its compatibility with Green Infrastructure applications further enhances system performance and extends the life of sustainable practices.

Taller than the widely adopted SC-740, the SC-800 reduces the required number of chambers for a given system size. It also allows for a lower minimum cover height—380mm (15") compared to 450mm (18") for the SC-740—enabling faster installation, improved cost efficiency, and the same reliable performance that has made StormTech a leader in underground stormwater management.

Chamber Sizing

• Size (L x W x H) 2,100 mm x 1,200 mm x 800 mm (85.4” x 51” x 33”)
• Chamber Storage 1.43 m3 (50.6 ft3)
• Min. Installed Storage* 2.22 m3 (78.4 ft3)
• Weight 37.1 kg (81.8 lbs)
• Shipping 30 chambers/pallet 60 end caps/pallet 12 pallets/truck

*SC-800 assumes 150mm (6") stone above and below chambers, 75mm (3") between chambers, and 40% Stone Porosity.
